Inflatable cylindrical stopper 200/400

A001-0201

Pipe plugs model inflatable cylindrical stopper AC 200/400 is suitable for pipe diameter 200 to 400mm. These pipe plugs are supplied with a 3 meter filling hose, chain and pressure gauge control set.

Lansas pipe plugs are used for the temporary blocking of pipes. It goes without saying that durable and safe plugs are a necessary condition to work safe.

The wall thickness of 9 mm and a burst pressure of> 10 Bar ensures that these inflatable pipe stoppers have a long service life and are reliable in use.

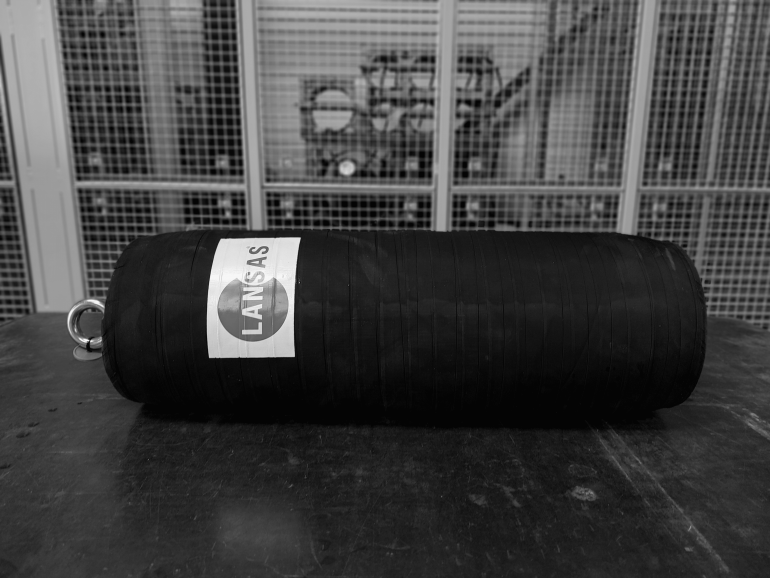

AC 200/400

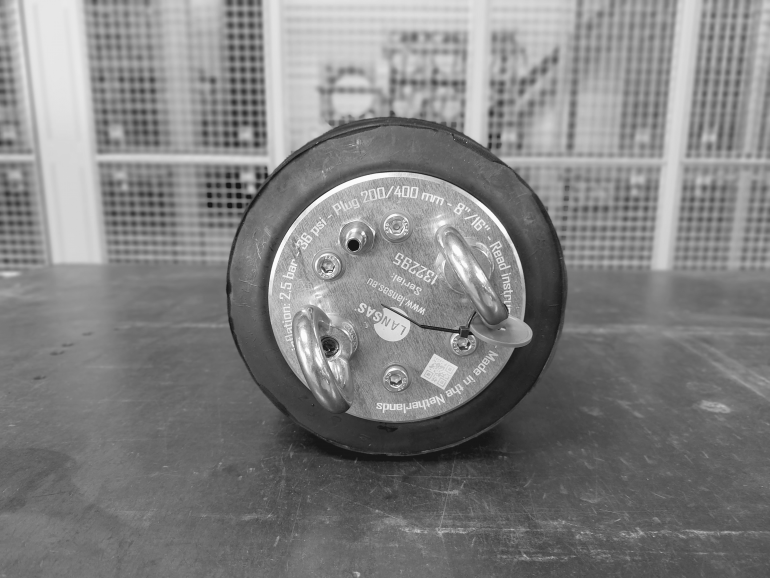

AC 200/400 front side
AC 200/400 rear side
manometer 2,5 bar (<500/100)
AC 200/400
AC 200/400 front side
AC 200/400 rear side
manometer 2,5 bar (<500/100)

Technische specificaties

Description

Diameter (mm)

min            max

Diameter
empty (mm)

Length (mm)

Operating pressure
(bar)

Weight (kg)

Eyebolt

Material

Body                          Flanges

AC 200/400

200

400

190

555

2,5

5,5

2x M10

Natuurrubber (NR)

Aluminium
