Pipe Stopper AC 100/200

opblaasbare ballonafsluiter

Closing cylinder AC 100/200 is suitable for pipe diameters from 300 to 600 mm. Whether for air testing, water testing, temporary shut-off or overpumping, the LANSAS balloon valves are an effective and easy solution.

The wall thickness of 9 mm and a burst pressure of >10 Bar make these inflatable balloon valves long-lasting and reliable in use.

All balloon valves are delivered with 3 or 5 metres chain, air hose and pressure gauge control kit with air release valve.

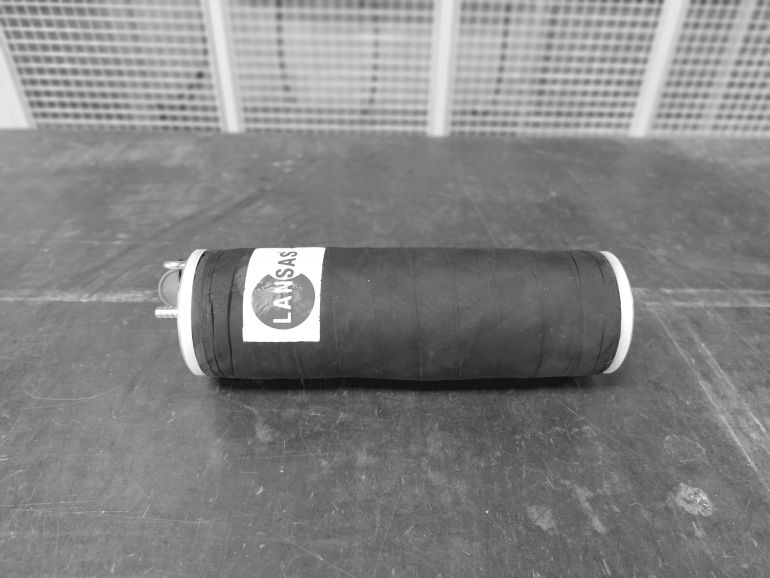

AC 100/200K

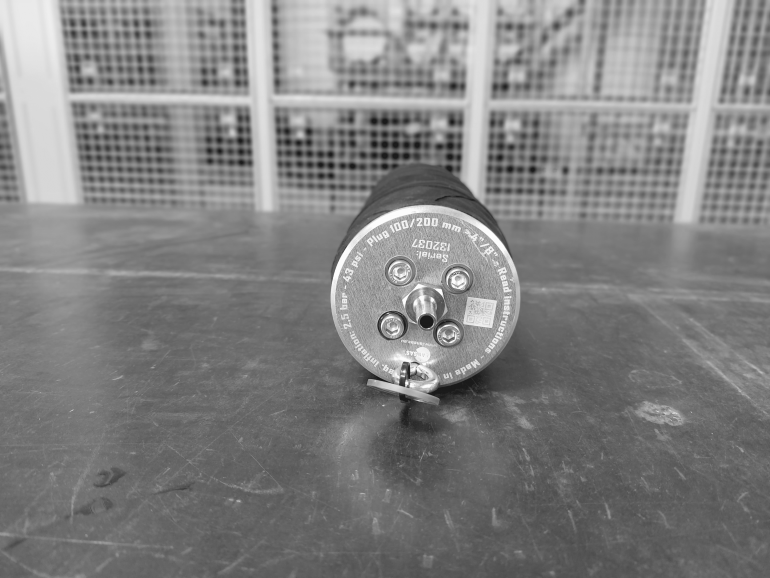

AC 100/200K Front side

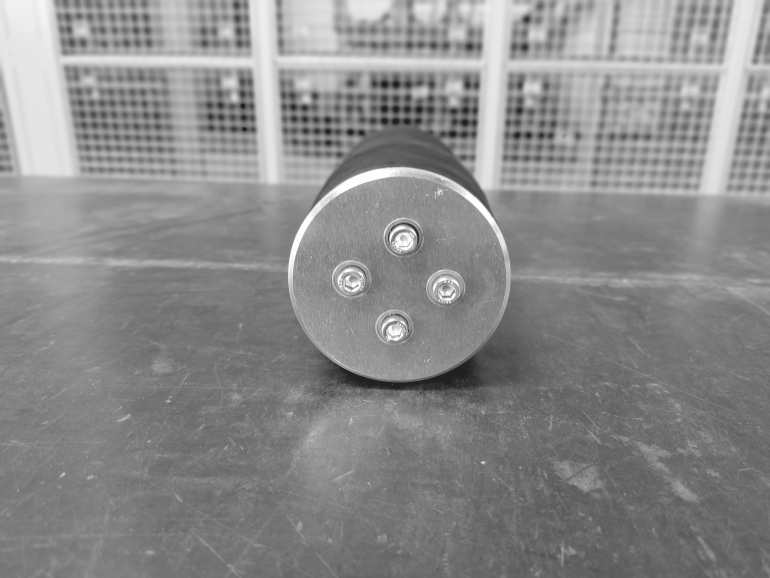

AC 100/200K Rear side
manometer 2,5 bar (<500/100)
AC 100/200K
AC 100/200K Front side
AC 100/200K Rear side
manometer 2,5 bar (<500/100)

Technische specificaties

Omschrijving

Diameter (mm)

min            max

Diameter
leeg (mm)

Lengte (mm)

Vuldruk
(bar)

Gewicht (kg)

oogmoer

Materiaal

Body                                    Flenzen

AC 100/200

100

200

86

400

2,5

2,5

M10

Natuurrubber (NR)

Aluminium
